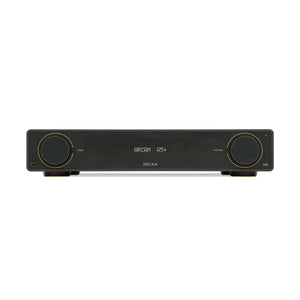

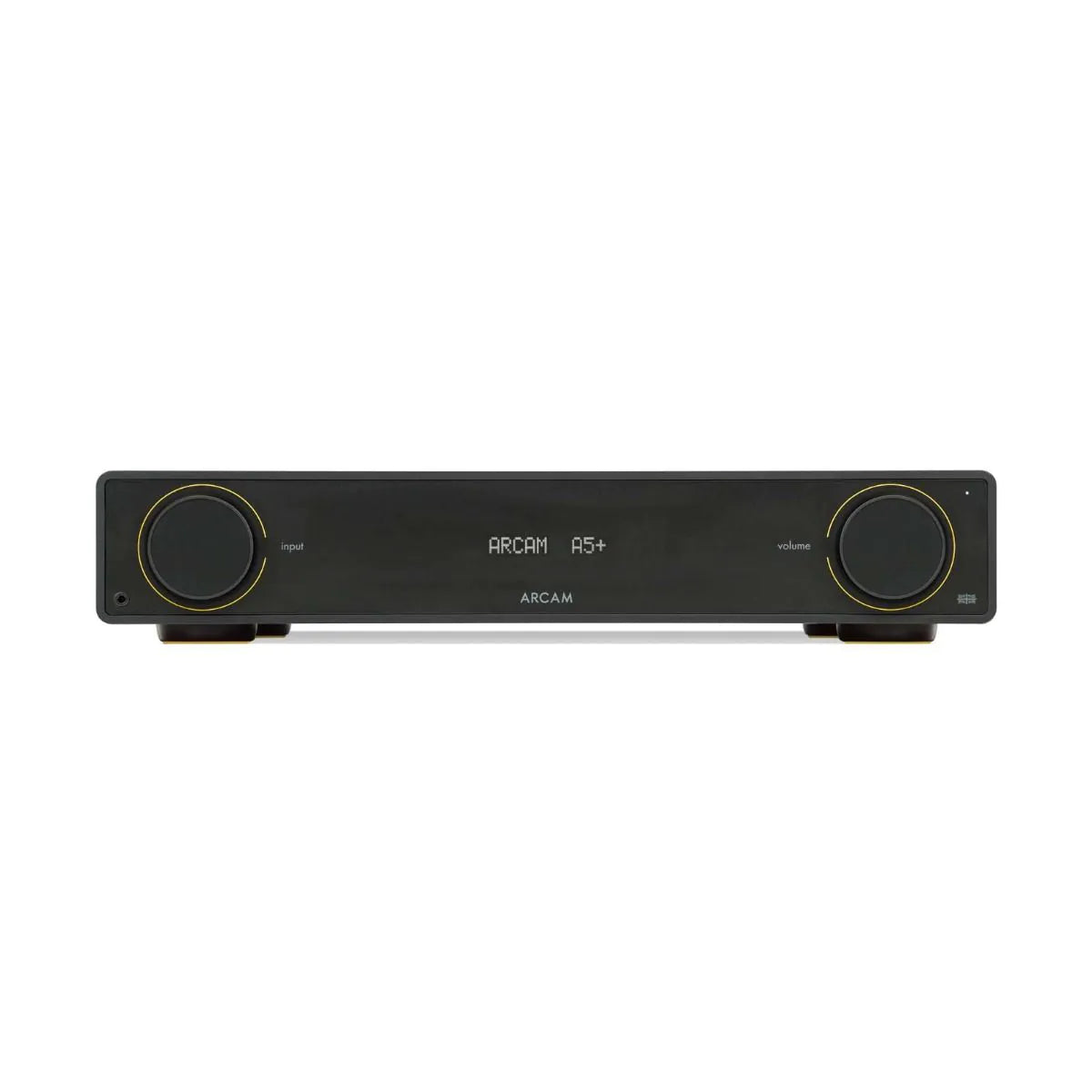

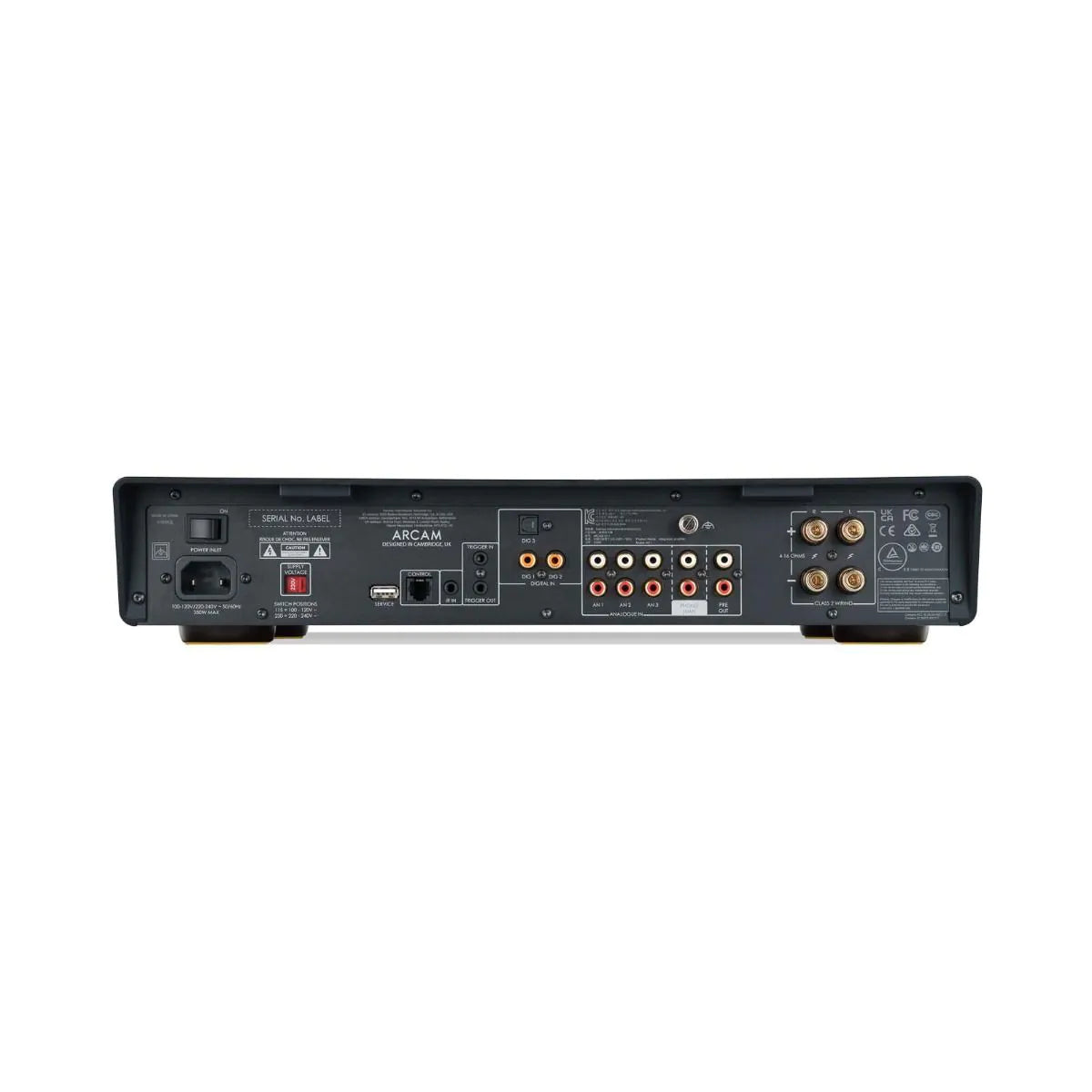

Arcam A5+ Integrated Amplifier
The "A" in ARCAM stands for amplification, where Arcam's expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to Arcam's first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, Arcam haven't rested. Arcam's engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.
The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.
With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.
Technical Specifications
| Continuous power output (0.5% THD) 2 channels driven | |
|---|---|
| 8Ω, 20Hz ‑ 20kHz | 50W |
| 4Ω, 1kHz | 75W |
| Harmonic distortion, 80% power, 8Ω at 1kHz | 0.003% |
|
Analogue Inputs |
|
| Number of inputs | 3 (RCA pairs) |
| Signal/noise ratio (A-wtd, ref. 50W, 1V input) | 106dB |
| Frequency response | 20Hz—20kHz ± 0.2dB |
|
Phono (MM) Input |
|
| Input impedance | 47kΩ + 100pF |
| Frequency response (ref. RIAA curve) | 20Hz—20kHz ± 1dB |
|
Digital Inputs |
|
| Supported Sample Rates | 192, 176.4, 96, 88.2, 48, 44.1 kHz |
| Bit depths | 24, 16 |
| Frequency response (filter 1) | 20Hz—20kHz ± 0.2dB |
| Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) | 109dB |
|
Headphone Output |
|
| Maximum output level (RMS) into 32Ω/300Ω | 2.5V/5V |
| Load range | 16Ω - 2kΩ |
|
Wireless Specifications |
|
| Bluetooth Version | 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast |
| Bluetooth Transmitter Frequency and Power | 2,400 MHz to 2,483.5 MHz: <20dBm |
|
General |
|
| Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 350W |
| Power consumption (standby) | <0.5W |
| Dimensions (WxDxH) | 431mm x 344mm x 83mm |
| Weight | 8.14kg |
