Rotel A11 MKII

  • £699.00
    Unit price per

Only 0 left!

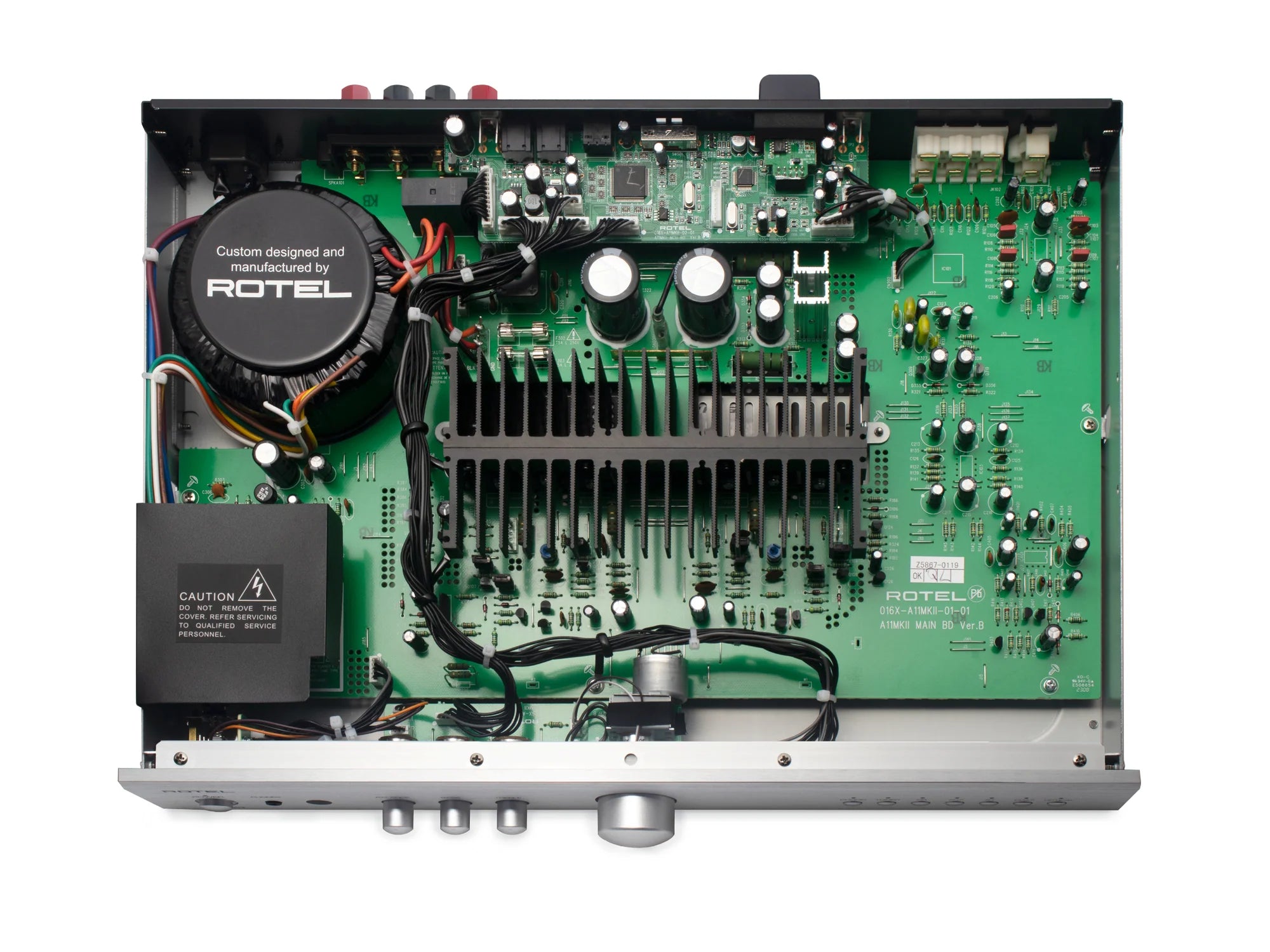

The Rotel A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience. Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11 MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

Exclusive Rotel power supply innovations and critical circuit layout provide physical and electrical separation to lower the noise floor and increase musical dynamics. The A11MKII’s multi-tap transformer delivers power to sensitive low-voltage circuits and the high current amplifier output stage independently, isolating the signal path from noise and reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.

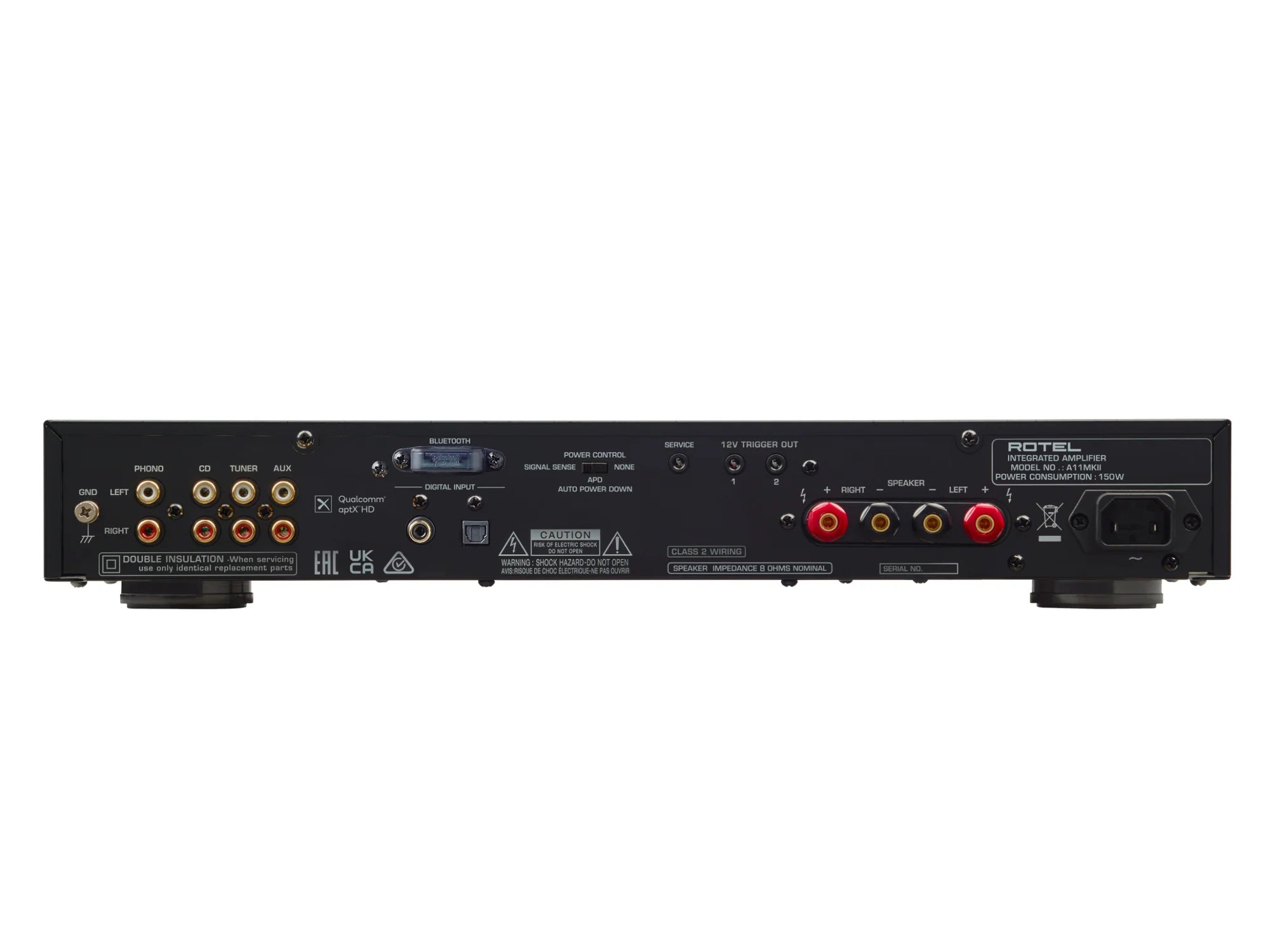

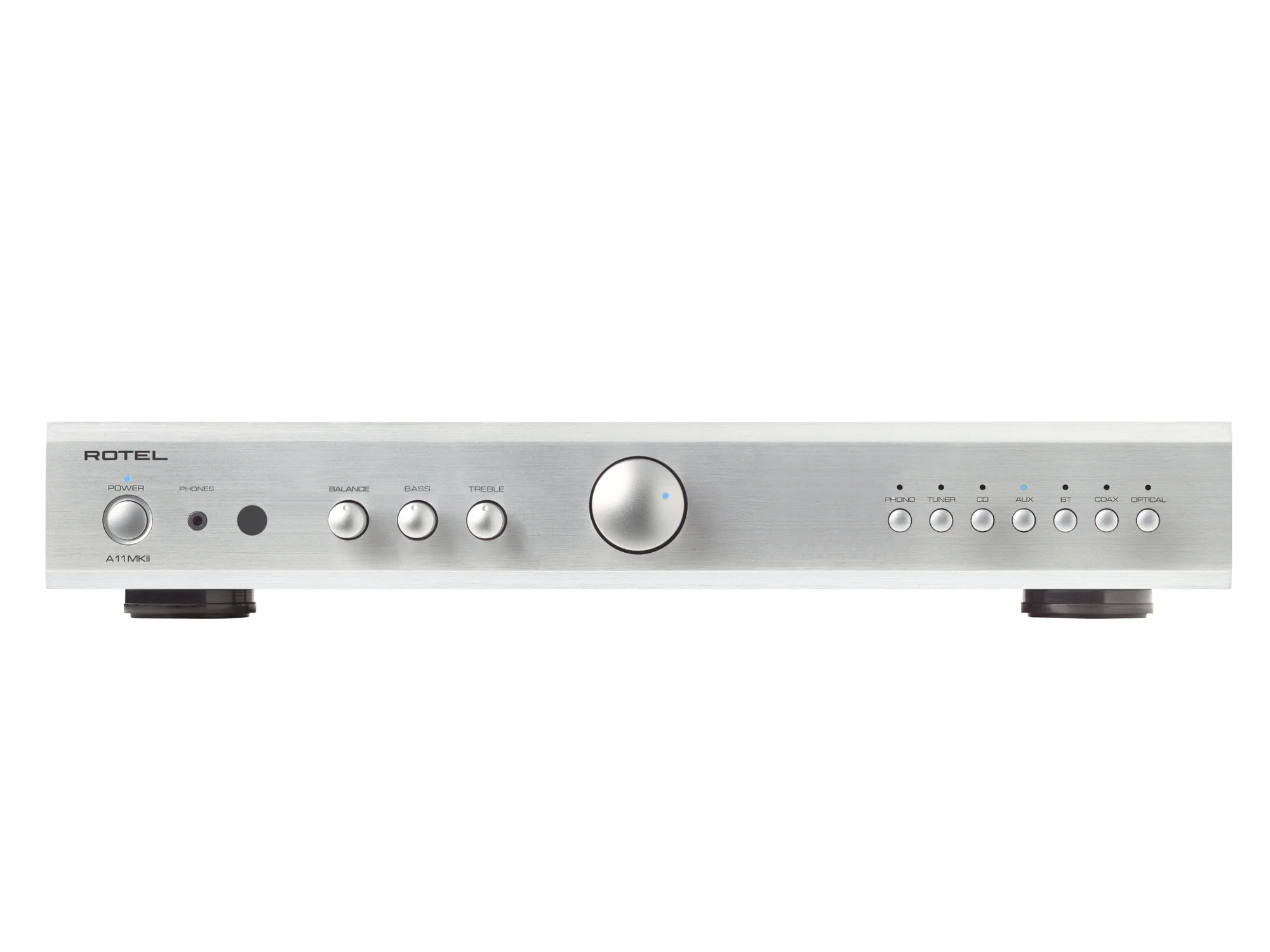

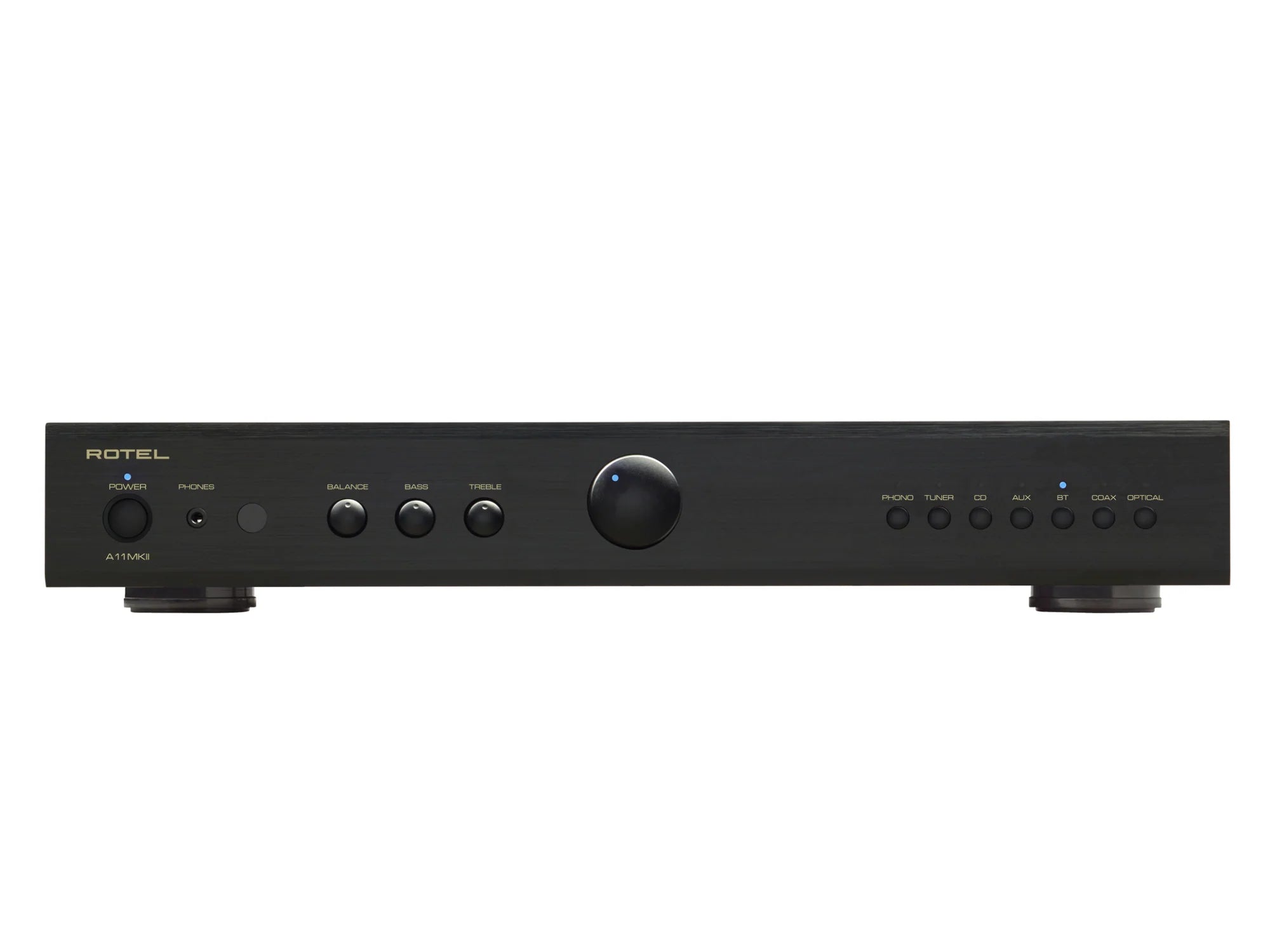

Both analogue and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptXTM HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions. The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close.

The included IR remote drives a motorized analogue volume controller for ease of use at the listening position. User friendly features such as a detachable IEC power cord, two 12V trigger outputs, heavy 5-way speaker binding posts, and signal sensing auto power on/off functions ensure compatibility with any installation.

The A11MKII is available in both black and silver colours.

Technical Specifications

Power Output


50 Watts / ch (8 Ohms)

62 Watts / ch (4 Ohms)

Total Harmonic Distortion

< 0.03%

Intermodulation Distortion

(60 Hz : 7k Hz, 4:1)

< 0.03%


Frequency Response

Phono input

Line Level Inputs


20 Hz - 20k Hz, -0.5 dB, +0.3 dB

10 Hz - 100k Hz, -0.5 dB, +0.05 dB

Damping Factor

(20 - 20,000 Hz, 8 Ohms)

120


Input Sensitivity / Impedance

Phono Input

Line Level Inputs


1.6 mV / 43 Ohms

130 mV / 45k Ohms

Input Overload

Phono Input

Line Level Inputs


50 mV

4 V

Tone Controls - Bass / Treble

± 6 dB at 100 Hz / 10k Hz

Signal to Noise Ratio

(IHF “A” weighted)

Phono Input

Line Level Inputs



85 dB

90 dB

Digital Section


Frequency Response

20 Hz – 20k Hz, -0.15 dB, +0 dB

Input Sensitivity / Impedance

-20 dBFS / 75 Ohms

Digital Inputs

SPDIF LPCM
(up to
24-bit/192k Hz)

Power Requirements

USA

Europe


120 V, 60 Hz

230 V, 50 Hz

Power Consumption

150 Watts

Standby Power Consumption

< 0.5 Watts

BTU (4 Ohms, 1/8 power)

450 BTU/h

Dimensions(WxHxD)

430 x 73 x 347 mm
17” x 2 7/8” x 13 5/8"

Front Panel Height

60 mm / 2 3/8"

Weight(net)

6.8 kg, 15 lbs.

Finish

Black and Silver
